ISUZU ELF NLR L 120 PS EURO 4
Truk ringan 4 ban Isuzu ELF NLR L 120 PS Euro 4 terbaru atau disebut CDE Colt Diesel Engkel Variant Chassis Panjang , kini memiliki mesin Diesel terbaru Sistem Common Rail Direct Injection TURBO VGS intercooler berkapasitas 2,999 CC dan Tenaga mesin 120 PS dengan Transmisi terbaru 6 tingkat percepatan yang Tangguh dan effisien.

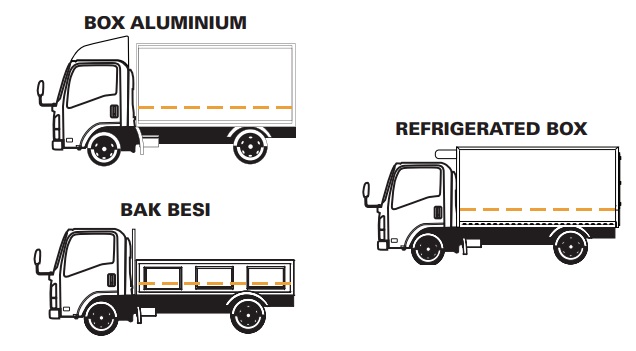

APLIKASI DAN KAROSERI ISUZU EF NLR L
Truk Isuzu ELF NLR L 120 PS Euro 4 dengan chassi terpanjang dikelanya ini memiliki keunggulan di Kapasitas angkut serta Handling dan manuver yang lincah, sehingga cocok di pakai pada aplikasi : BAK BESI 3 WAY , BAK SENTRAL , BAK KAYU , LOSBAK , FLAT DECK , BOX BESI , BOX ALUMUNIUM , BOX FREEZER , WING BOX , BLINDVAN , MOKO , MOBIL LAYANAN , MOBIL IKLAN , BAK GALON AIR , dan lain sebagainya,
SPESIFIKASI DAN DIMENSI ISUZU ELF NLR L
SISTEM PENGGERAK RODA : 4X2

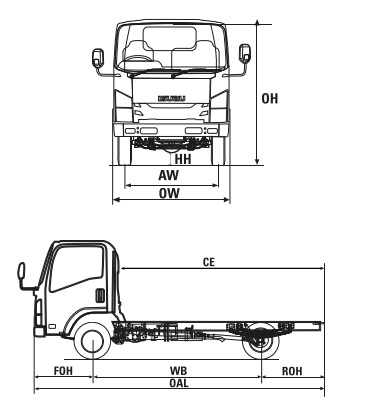

DIMENSI :
| Panjang / Overall Length [OAL] | 6,470 MM |
| Lebar / Overall Width [OW] | 1,835 MM |
| Tinggi / Overall Height [OH] | 2,205 MM |
| Jarak Sumbu / Wheelbase [WB] | 3,360 MM |
| Julur Depan / Front Overhang [FOH] | 1,110 MM |
| Julur Belakang / Rear Overhang [ROH] | 2,000 MM |
| Jarak Terendah ke Tanah / Minimum Clearance [HH] | 220 MM |
| Jejak Depan / Front Tread [AW] | 1,475 MM |
| Jejak Belakang / Rear Tread [CW | 1,395 MM |
| Cabin to End [CE] | 4,897 MM |
MESIN :
| Model | 4JJ1-TCC |
| Tipe / Type | Direct Injection, Commonrail, DOHC, 4 Cylinder with VGS Turbo Intercooler |
| Sistem Kontrol Emisi | EURO4 with EGR & DOC |
| Diameter x Langkah / Bore x Stroke | 95.4 X 104.9 MM |
| Isi Silinder / PistonDisplacement | 2,999 CC |
| Tenaga Maksimum / Maximum Power | 120 / 2,600 PS/ RPM |
| Torsi Maksimum /Maximum Torque | 36 / 1,500 – 2,600 KG.M/ RPM |
TRANSMISI :
| Mode | MYY6S |
| PerbandinganGigi / Gear Ratio | 1ST = 5,979 |
| 2ND = 3,434 | |
| 3RD = 1,862 | |
| 4TH = 1,297 | |
| 5TH = 1,000 | |
| 6TH = 0,759 | |
| REVERSE = 5,701 | |
| PerbandinganGigi Terakhir / Final Gear Ratio | 4,777 |
BERAT – GVW :
| Berat Kosong Kendaraan / Curb Weight | 1,986 KG |
| BeratTotal Kendaraan /Gross VehicleWeight [GVW] | 5,100 KG |
| Kapasitas Gardan Depan / Capacity Front Axle | 2,200 KG |
| Kapasitas Gardan Belakang / Capacity Rear Axle | 2,900 KG |
REM :
| Tipe/Type | Hydraulic |
| Rem Kaki / Service Brake | Hydraulic saluran ganda dengan vacum booster |
| Rem Tangan / Hand Brake | Expanding pada transmisi belakang |
| Sistem Pengereman Gas Buang / Exhaust Brake | Exhaust brake, tuas berada di stir |
RODA :
| Ukuran Ban | 7.50-15-14PR |
| Ukuran Velg | 15 X 5.50 |
SUSPENSI :
| Depan / Front | Semi eliptical laminated leaf spring dengan shock absorber berdaya ganda |
| Belakang / Rear | Semi eliptical laminated leaf spring dengan shock absorber berdaya ganda |
LAIN LAIN :
| Kapasitas Tangki / Fuel Tank Capacity | 100 LITER |
| Radius Putar Minimum / Minimum Turning Radius | 7.3 METER |
| Daya Tanjak Maksimum / Maximum Gradeability | 52 % |
| Kecepatan Maksimum / Maximum Speed | 114 KM/ HOUR |
| Aki / Accu | 2 X 12 V – 60 Ah V-AH |
| Alternator | 24 – 50 V-A |
| Kamera Mundur / Reverse Parking Camera | ADA |
| Audio Head Unit | ADA |
| USB Charging System | ADA |
| APAR (Alat Pemadam Api Ringan) | ADA |
| Fan Blower | ADA |
| Garansi / Warranty | 3 Tahun / 100,000 km |
