ISUZU GIGA FTR T 210 PS EURO 4
Medium Truk Isuzu GIGA FTR T 210 PS Euro 4 terbaru dengan mesin Common Rail , Diesel Euro 4 direct injection Turbo VGS intercooler berkapasistas 4 cylinder 5,193 CC dengan Torsi 72 KG.M/ 1,600 RPM ini memiliki Chassis terpanjang di kelasnya dengan Panjang 10,78 Meter dan Cabin to End 8,79 meter dan memiliki daya angkut maksimal sampai dengan 14 Ton.

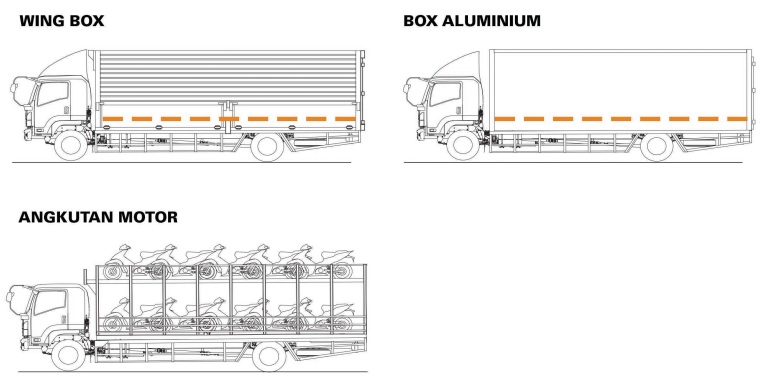

APLIKASI ANGKUTAN DAN KAROSERI ISUZU GIGA FTR T 210 PS
Isuzu Giga FTR T 210 PS euro 4 merupakan Truk Logistik denga ddaya angkut besar, dapat di aplikasikan ke Karseri ; Bak Besi , Bak Sentral . Box Besi , Box Freezer , Wing Box , Flat Deck , Losbak , Truk Angkutan Motor , dan lain sebagainya.
SPESIFIKASI DAN DIMENSI
SISTEM PENGGERAK RODA : 4×2

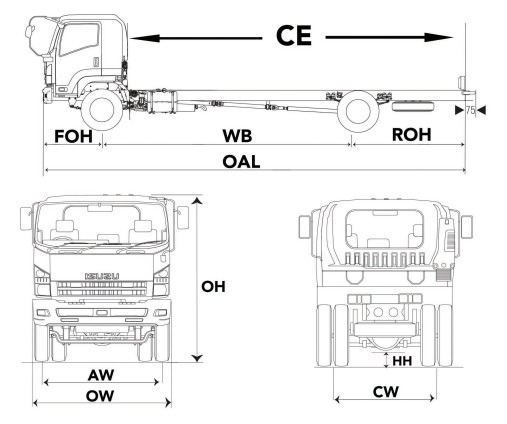

DIMENSI :
| Panjang / Overall Length [OAL] | 10,785 | mm |
| Lebar / Overall Width [OW] | 2,400 | mm |
| Tinggi / Overall Height [OH] | 2,775 | mm |
| Jarak Sumbu / Wheelbase [WB] | 6,500 | mm |
| Julur Depan / Front Overhang [FOH] | 1,440 | mm |
| Julur Belakang / Rear Overhang [ROH] | 2,845 | mm |
| Jarak Terendah ke Tanah / Minimum Clearance [HH] | 276 | mm |
| Dimensi Chassis | 850 x 254 x 8 | mm |
| Jejak Depan / Front Tread [AW] | 1,990 | mm |
| Jejak Belakang / Rear Tread [CW | 1,790 | mm |
| Cabin to End [CE] | 8,790 | mm |
MESIN:
| Model | 4 HK1-TCS | |
| Tipe / Type | Direct Injection, OHC, 4 Cylinder, VGS Turbo Intercooler | |
| Sistem Kontrol Emisi | EURO4 with EGR & DOC | |
| Diameter x Langkah / Bore x Stroke | 115 X 125 | mm |
| Isi Silinder / PistonDisplacement | 5,193 | CC |
| Tenaga Maksimum / Maximum Power | 210 / 2,600 | PS/ RPM |
| Torsi Maksimum /Maximum Torque | 72 / 1,600 – 2,600 | KG.M/ RPM |
TRANSMISI:
| Mode | MZW6P | |
| PerbandinganGigi / Gear Ratio | 1ST | 6.615 |
| 2ND | 4.095 | |
| 3RD | 2.358 | |
| 4TH | 1.531 | |
| 5th | 1.000 | |
| 6th | 0.722 | |
| REV | 6.615 | |
| PerbandinganGigi Terakhir / Final Gear Ratio | 6.500 |
BERAT-GVW:
| Berat Kosong Kendaraan / Curb Weight | 4,580 | KG |
| BeratTotal Kendaraan /Gross VehicleWeight [GVW] | 14,000 | KG |
| Kapasitas Gardan Depan / Capacity Front Axle | 5,150 | KG |
| Kapasitas Gardan Belakang / Capacity Rear Axle | 8,850 | KG |
REM:
| Tipe/Type | AOH |
| Rem Kaki / Service Brake | Air Over Hydraulic |
| Rem Tangan / Hand Brake | Mekanisme Expanding di Transmisi Output |
| Sistem Pengereman Gas Buang / Exhaust Brake | ADA |
RODA:
| Ukuran Ban | 9.00-20-14PR [Miller] |
| Ukuran Velg | 8STUD 20X6.50T |
SUSPENSI:
| Depan / Front | Rigid Suspension dengan Multi Leaf Spring |
| Belakang / Rear | Rigid Suspension dengan Multi Leaf Spring |
LAIN-LAIN:
| Kapasitas Tangki / Fuel Tank Capacity | 200 | LITER |
| Radius Putar Minimum / Minimum Turning Radius | 10.6 | METER |
| Daya Tanjak Maksimum / Maximum Gradeability | 35 | % |
| Kecepatan Maksimum / Maximum Speed | 107 | KM/HOUR |
| Aki / Accu | 2 x 12 V – 65 Ah | V-AH |
| Alternator | 24 – 50 | V-A |
| Rubber Damper Cabin Suspension | ADA | |
| Kamera Mundur / Reverse Parking Camera | ADA | |
| Audio Head Unit | ADA | |
| USB Charging System | ADA | |
| APAR (Alat Pemadam Api Ringan) | ADA | |
| Garansi / Warranty | 1 Tahun / 50,000 km |
