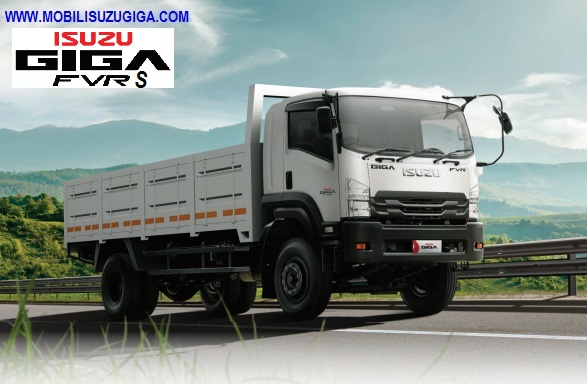

ISUZU GIGA FVR S 245 PS 4X2 6 Ban Euro 4
Isuzu Medium Duty Truk , Isuzu Giga FVR S 245 PS 4×2 6 Ban Euro 4 terbaru merupakan Truk serbaguna peruntukan angkutan Logisitik , industri , Konstrksi , Pertambangan dan lain sebagainya, Truk bermesin Diesel 6 Cylinder 7.790 CC Common Rail Direct Injection VGS Turbo intercooler bertenaga 245 PS dan Torsi 80,9 KG.M/ 1,450 RPM lebih bertenaga dan effisien dengan putaran mesin rendah dan berTorsi besar.

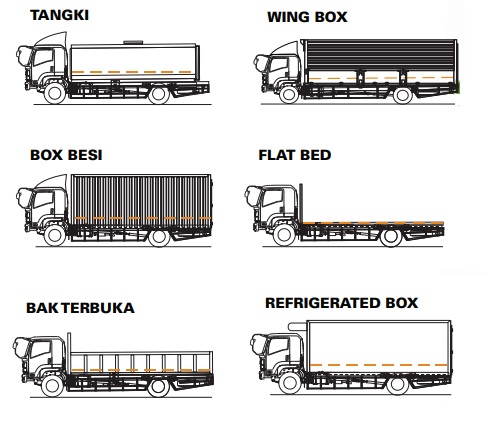

Aplikasi Karoseri Isuzu Giga FVR S
Isuzu Giga FVR S 245 PS 4×2 6 Ban Euro 4 memiliki peruntukan angkutan dengan Karoseri : BOX BESI , WING BOX , BOX FREEZER , LOSBAK , FLAT DECK , BAK BESI TERBUKA 7 WAY, BAK BESI SENTRAL , TANGKI AIR , TANGKI CPO , TANGKI VACUM , LUBE TRUK , SELF LOADER , CRANE TRUK DAN LAIN SEBAGAINYA,
Spesifikasi dan Dimensi Isuzu Giga FVR S
SISTEM PENGGERAK RODA : 4X2

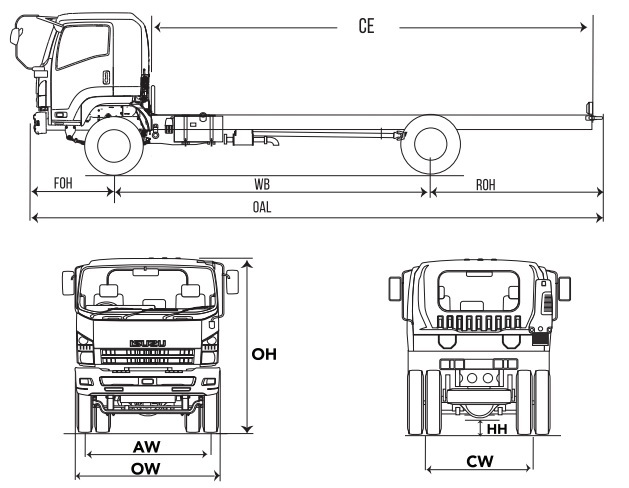

DIMENSI :
| Panjang / Overall Length [OAL] | 10,640 | MM |
| Lebar / Overall Width [OW] | 2,465 | MM |
| Tinggi / Overall Height [OH] | 2,930 | MM |
| Jarak Sumbu / Wheelbase [WB] | 6,160 | MM |
| Julur Depan / Front Overhang [FOH] | 1,250 | MM |
| Julur Belakang / Rear Overhang [ROH] | 3,230 | MM |
| Jarak Terendah ke Tanah / Minimum Clearance [HH] | 265 | mm |
| Dimensi Chassis | 870 x 275 x 7.5 | mm |
| Jejak Depan / Front Tread [AW] | 2,060 | mm |
| Jejak Belakang / Rear Tread [CW | 1,850 | mm |
| Cabin to End [CE] | 8,540 | mm |
MESIN :
| Model | 6HK1-TCN | |
| Tipe / Type | Direct Injection, OHC, 6 Cylinder, Heavy Duty Commonrail, VGS Turbo Intercooler | |
| Sistem Kontrol Emisi | EURO4 with EGR & DOC | |
| Diameter x Langkah / Bore x Stroke | 115 X 125 | mm |
| Isi Silinder / PistonDisplacement | 7,790 | CC |
| Tenaga Maksimum / Maximum Power | 245 / 2,400 | PS/RPM |
| Torsi Maksimum /Maximum Torque | 80.5 / 1,450 – 2,400 | KGM/RPM |
TRANSMISI :
| Mode | ES9306A | |
| PerbandinganGigi / Gear Ratio | 1ST | 9.010 |
| 2ND | 5.270 | |
| 3RD | 3.220 | |
| 4TH | 2.040 | |
| 5th | 1.360 | |
| 6th | 1.000 | |
| REV | 8.630 | |
| PerbandinganGigi Terakhir / Final Gear Ratio | 5.571 |
BERAT , GVW :
| Berat Kosong Kendaraan / Curb Weight | 5,680 | KG |
| BeratTotal Kendaraan /Gross VehicleWeight [GVW] | 16,000 | KG |
| Kapasitas Gardan Depan / Capacity Front Axle | 6,000 | KG |
| Kapasitas Gardan Belakang / Capacity Rear Axle | 10,000 | KG |
SISTEM REM :
| Tipe/Type | Full Air Brake |
| Rem Kaki / Service Brake | Full Air dengan Drum Brake |
| Rem Tangan / Hand Brake | Mekanisme Tuas, dengan Air Valve |
| Sistem Pengereman Gas Buang / Exhaust Brake | Ada |
VELG & BAN :
| Ukuran Ban | 10.00-20-16PR |
| Ukuran Velg | 10STUD 20X7.50T |
SUSPENSI :
| Depan / Front | Rigid Suspension dengan Multi Leaf Spring |
| Belakang / Rear | Rigid Suspension dengan Multi Leaf Spring |
LAIN LAIN :
| Kapasitas Tangki / Fuel Tank Capacity | 200 | LITER |
| Radius Putar Minimum / Minimum Turning Radius | 9.7 | METER |
| Daya Tanjak Maksimum / Maximum Gradeability | 45 | % |
| Kecepatan Maksimum / Maximum Speed | 87 | KM/HR |
| Aki / Accu | 2 x 12 V – 65 Ah | V-AH |
| Alternator | 27 – 60 | V-A |
| Semi Float (Rubber) Damper Cabin Suspension | ADA | |
| Kamera Mundur / Reverse Parking Camera | ADA | |
| Audio Head Unit | DAD | |
| USB Charging System | ADA | |
| APAR (Alat Pemadam Api Ringan) | ADA | |
| Garansi / Warranty | 1 Tahun / 50,000 km |
